NSCS-302
Hydraulic cylinder, 700 bar

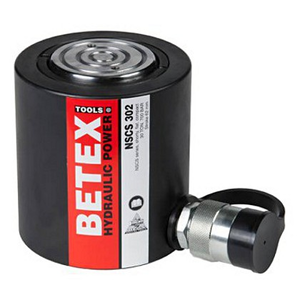

BETEX NSCS Compact cylinder, short stroke, single-acting, spring return, 30T class
Frequently bought together
Technical data
30 | Capacity class (tons) | |
| sp | 62 mm | Stroke |
| Fa | 309 kN | Advance force, max. |
| pmax | 700 bar | Operating pressure, max. |
| Voil | 274 cm³ | Oil capacity |
| A | 117 mm | Height, retracted |
| B | 179 mm | Height, extended |
| D | 107 mm | Outer diameter |
| E | 75 mm | Cylinder bore diameter |
| F | 63,5 mm | Plunger diameter |
| H | 19 mm | Base to advance port |
| K | 3 mm | Piston protrusion |
| O | M5 | Plunger female thread |
| P | 8 mm | Plunger thread length |
| U | 39 mm | Piston mounting holes, bolt circle |
| ≈m | 6,8 kg | Weight |
Additional information
Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap | Product specifics |
Downloads:
Your current product variant
| Series | NSCS | Short stroke cylinder |
| Version | 30T | Capacity class 30 |
