HC6204
Deep groove ball bearing
Deep groove ball bearing HC62, Hybrid bearing, single row, steel sheet metal cage
Main Dimensions & Performance Data
| d | 20 mm | Bore diameter |
| D | 47 mm | Outside diameter |
| B | 14 mm | Width |
| Cr | 15.600 N | Basic dynamic load rating, radial |
| C0r | 8.400 N | Basic static load rating, radial |
| Cur | 330 N | Fatigue load limit, radial |
| nG | 26.500 1/min | Limiting speed |
| nϑr | 17.900 1/min | Reference speed |
| ≈m | 0,093 kg | text.product.weight |
Mounting dimensions
| da min | 25,6 mm | Minimum diameter shaft shoulder |
| Da max | 41,4 mm | Maximum diameter of housing shoulder |
| ra max | 1 mm | Maximum fillet radius |
Dimensions
| rmin | 1 mm | Minimum chamfer dimension |
| D1 | 38,45 mm | Shoulder diameter outer ring |
| D2 | 40,96 mm | Caliber diameter outer ring |
| d1 | 28,75 mm | Shoulder diameter inner ring |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Calculation factors
| f0 | 16,7 | Calculation factor |
Operating conditions for bearing HC6204
In work for HC6204
CO₂e caused by friction during operation
Comprehensive information with immediate calculations of the CO2e emissions of our rotative products in various application scenarios.
Load
*MandatoryMotion Influences
*Mandatory Preset calculation parameters
Arcanol MULTI2
Greasenormal cleanliness
Contamination70°C
Operating Temperature20°C
Ambient Temperature Choose your calculations
Powered by Bearinx
Please add the remaining conditions.
CO₂e emissions
For Production info_outline
Rating life
Total Rating Life (Lh10)
-
Static safety (S0)
-
Your feedback helps us to continuously improve our product.
Access the benefits of the medias EasyCalc - Download now!
productDetailsPage.tabs.downloads.filterBox.categories.option.all
productDetailsPage.tabs.downloads.filterBox.languages.option.all
2017-08-15 | Katalog | MH1 Dismounting Hydraulic | Deutsch
Ausbau von Wälzlagern - Hydraulischer Ausbau
2017-08-15 | Katalog | MH1 Dismounting Mechanical | Deutsch
Ausbau von Wälzlagern - Mechanischer Ausbau
2024-05-15 | Technische Produktinformation | TPI 206 | Englisch
Current-Insulating Bearings
2017-09-15 | Katalog | MH1 Services | Deutsch
Dienstleistungen
2017-08-15 | Katalog | MH1 Dismounting Hydraulic | Englisch
Dismounting of rolling bearings - Hydraulic dismounting
2017-08-15 | Katalog | MH1 Dismounting Mechanical | Englisch
Dismounting of rolling bearings - Mechanical dismounting
2017-08-15 | Katalog | MH1 Mounting Mechanical | Deutsch
Einbau von Wälzlagern - Mechanischer Ausbau
2017-09-15 | Katalog | MH1 Thermal mounting | Deutsch
Einbau von Wälzlagern - Thermischer Einbau
2011-02-17 | Datenblatt | RFB 17 | Englisch
Hybrid deep groove ball bearings in spreader rolls
2011-02-1 | Datenblatt | RFB 17 | Deutsch

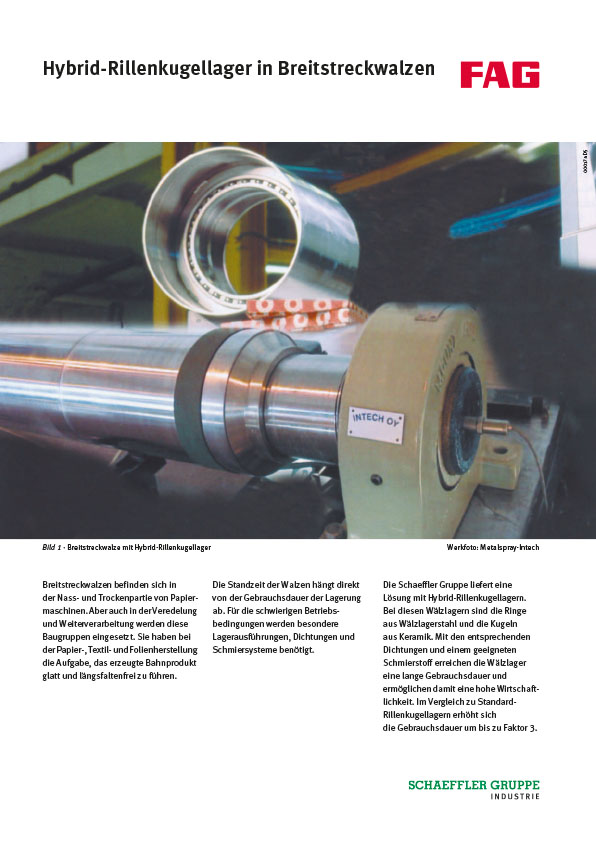

Hybrid-Rillenkugellager in Breitstreckwalzen
