LTS16-100-1
Linear table

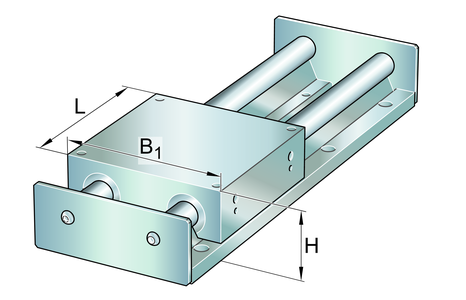

Main Dimensions & Performance Data
| H | 48 mm | Total Height |
| B1 | 100 mm | Total Width |
| L | 100 mm | Length of carriage |

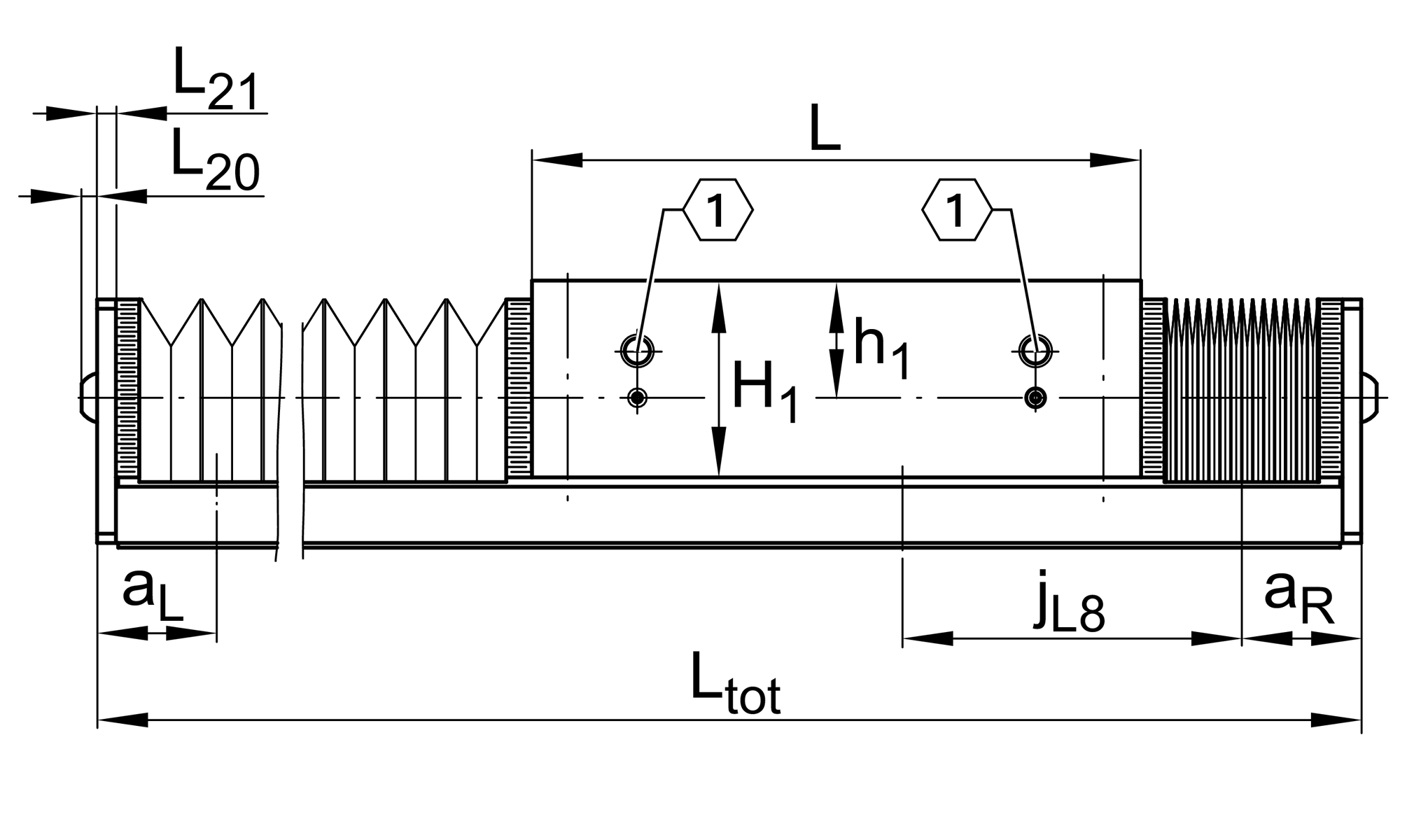

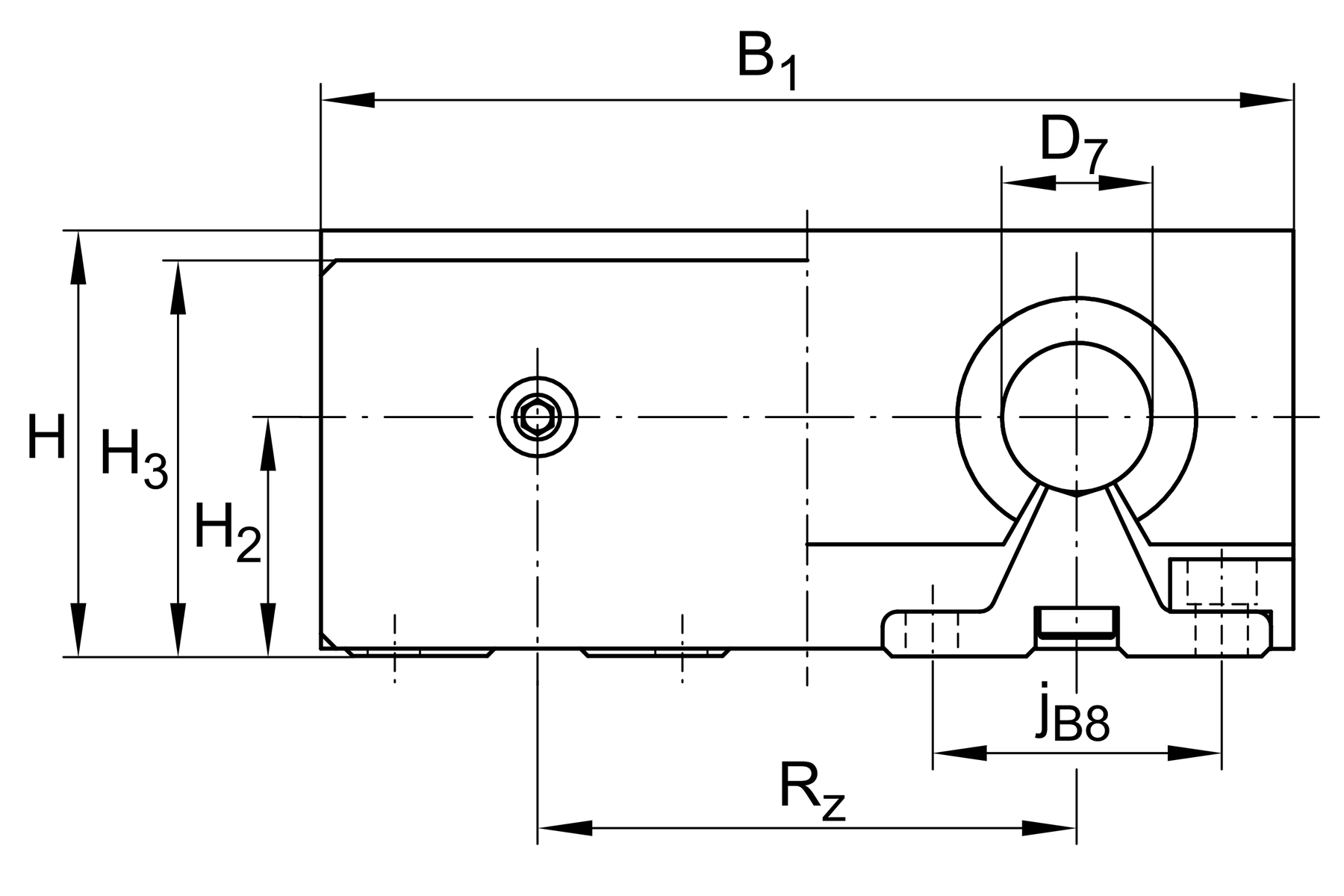

Mounting dimensions
| D7 | 16 mm | Tolerance h7 |
| D8 | 5,5 mm | |
| H1 | 35,5 mm | Height of carriage |
| H12 | 11,5 mm | |
| H2 | 26 mm | |
| H3 | 42 mm | |
| JB43 | 88 mm | |
| jB8 | 33 mm | |
| jL8 | 100 mm | |
| K43 | M5 | |
| L20 | 3,3 mm | |
| L21 | 4 mm | |
| Ltot | 3.000 mm | Maximum length |
| Rx | 55,6 mm | |
| S | 10 mm | |
| T8 | 5,6 mm | |
| t43 | 13 mm | Depth of Thread |
| BB | 29 mm | Length of Bellows Fastener |
| FBL | 1,58 mm | Effective length factor of bellow |
| G43 | M6 | Thread |
| JL43 | 88 mm |
Dimensions
| H7 | 5 mm | |
| h1 | 22 mm | |
| Rz | 54 mm |
Technical data
| vmax | 5 m/s | Maximum Speed |
| amax | 20 m/s2 | Maximum Acceleration |
| mLAW | 0,8 kg | Mass of Carriage |
| CI | 2.110 N | Load direction I: compressive load |
| C0I | 2.480 N | Load direction I: compressive load |
| CII | 880 N | Load direction II: tensile load |
| C0II | 1.140 N | Load direction II: tensile load |
| CIII | 2.240 N | Load direction III: lateral load |
| C0III | 2.900 N | Load direction III: lateral load 1 |
| M0x | 29 Nm | Max. permissible static moment per Carriage 2 |
| M0y | 50 Nm | Max. permissible static moment per Carriage 2 |
| M0z | 32 Nm | Max. permissible static moment per Carriage 2 |
Additional information
KBO16-PP-AS | Bearing 1 |
Temperature range
| min | 0 °C | Minimum operating Temperatur |
| max | 80 °C | Maximum operating Temperatur |
Footnotes
1
2
Downloads:
Your current product variant
| Size code | 16 | |
| Drive type | OA | Without drive |
| Length of carriage | 100 | 100 mm |
| Bellow | 1 | Yes |
