MLFI25-250-ZR-W2-N
Linear actuator
Actuators with internal track roller guidance system and toothed belt drive.With second, driven carriage and fixing slots in carriage
Main Dimensions & Performance Data
| B2 | 58 mm | Total Width |
| H | 56 mm | Height |
| L | 250 mm | Length |
Mounting dimensions
| D86 | 28 mm | |
| Tol D86 | H7 | Tolerance |
| d85 | 12 mm | |
| L88 | 20,5 mm | |
| G87 | M5 | Thread |
| h56 | 11,5 mm | |
| h85 | 24,2 mm | |
| h87 | 23 mm | Tolerance ±0,2 |
| JB43 | 40 mm | |
| JB8 | 40 mm | |
| L8 | 76 mm | |
| l85 | 37,5 mm | |
| l87 | 58 mm | |
| NB85 | 4 mm | Width of Keyway |
| Tol NB85 | P9 | Tolerance |
| NL85 | 12 mm | Length of Keyway |
| NT85 | 2,5 mm | Depth of Keyway, Tolerance P9 |
| T86 | 3,7 mm | Depth Fit |
| Tol T86 up | 0,2 mm | Upper Tolerance |
| Tol T86 low | 0 mm | Lower Tolerance |
| t87 max | 10 mm |

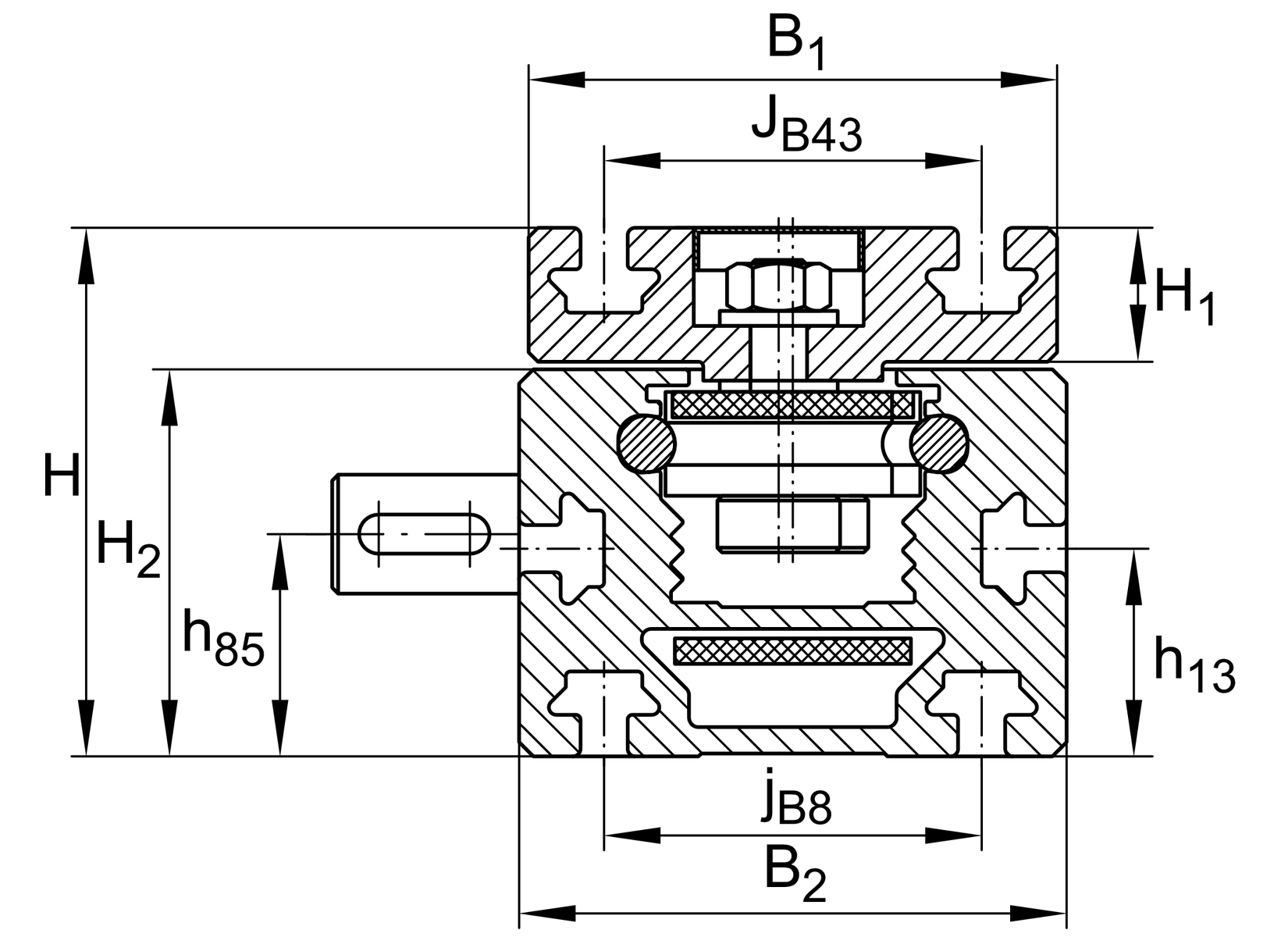

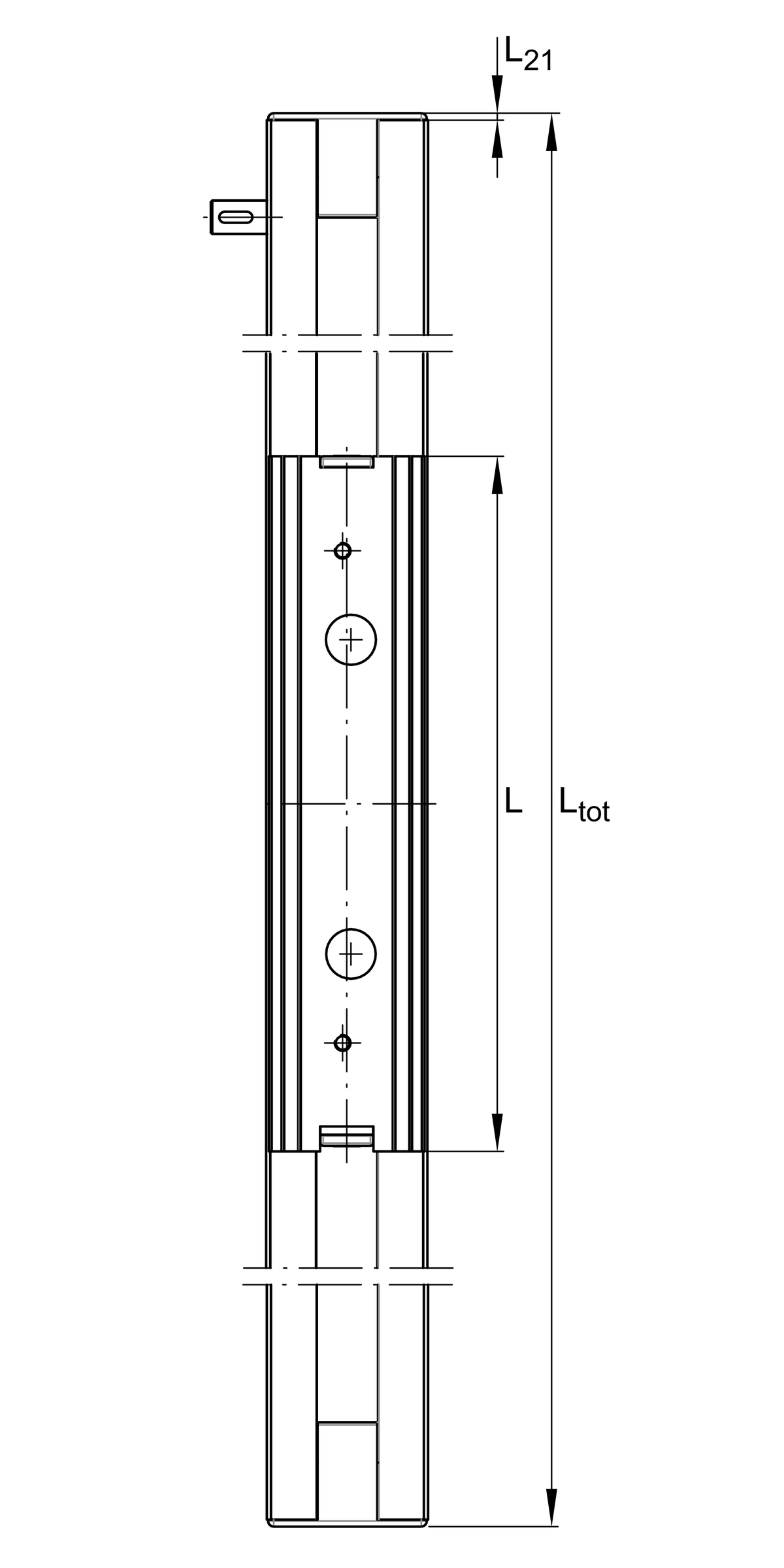

Dimensions
| B1 | 56 mm | Width of Carriage |
| H1 | 14,2 mm | Height of Carriage |
| H2 | 41 mm | Height |
| h13 | 22 mm | |
| L2 max | 4.000 mm | Maximum length of Support Rail |
| L4 | 65 mm | |
| L5 | 8,5 mm | Length of Shaft Support Block without drive System |
| L21 | 2,5 mm | |
| S | 40 mm | Dimension |
Technical data
| mLAW | 0,71 kg | Mass of Carriage |
| m3 | 1,2 kg | Mass of additional Carriage |
| vmax | 4 m/s | Maximum Speed |
| amax | 20 m/s2 | Maximum Acceleration |
| Rx | 113 mm | |
| Ry | 22,7 mm | |
| Rz | 3 mm | |
| I C | 3.400 N | Load direction I: compressive load |
| I C0 | 2.050 N | Load direction I: compressive load |
| II C | 3.400 N | Load direction II: tensile load |
| II C0 | 2.050 N | Load direction II: tensile load |
| III C | 7.000 N | Load direction III: lateral load |
| III C0 | 4.150 N | Load direction III: lateral load |
| M0x per | 32 Nm | Max. permissible static moment per Carriage 1 |
| M0y per | 290 Nm | Max. permissible static moment per Carriage 1 |
| M0z per | 135 Nm | Max. permissible static moment per Carriage 1 |
| Iy | 46 cm4 | Geometrical moments of inertia of Support Rail |
| Iz | 17 cm4 | Geometrical moments of inertia of Support Rail |
Additional information
5,6 Nm | Max. permissible drive torque | |
4 x LFR50/8-6-2Z | Track Rollers | |
0,1 mm | Repeat Accurancy ± | |
85 mm | Feed (mm/rotation) | |
25AT5 | Toothed Belt | |
0,082 kg/m | Mass of Toothed Belt | |
420 N | Permissible Toothed Belt operating force | |
0,1 kg*cm2 | Mass moment of inertia of Gears and Gearboxes |
Temperature range
| Tmin | 0 °C | Minimum operating Temperatur |
| Tmax | 80 °C | Maximum operating Temperatur |
Footnotes
1
Downloads:
Your current product variant
| Size code | 25 | |
| Length of carriage | 250 | 250 mm |
| Version | / | Standard |
| Design | / | Basis |
| Drive type | (3)ZR | Toothed belt drive |
| Additional carriage | W2 | Second, driven carriage |
| Attachment to the carriage | N | T-Slots |
| Support rail design | / | One-piece |
