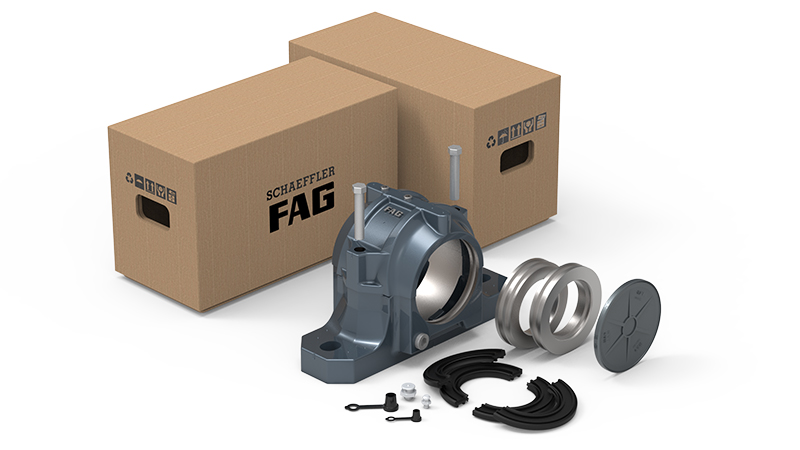

Integrated All-in-One SNV Housing Kit with Seals and End Cover
The latest innovation in our product development is the complete SNV Housing kit – with seals and end covers.The Schaeffler FAG SNV housing kit represents an integrated bearing solution that delivers performance, productivity and efficiency. Designed according to the modular system these housings are manufactured at a precision facility, with the highest level of quality control. To deliver customers premium performance, we ensure perfection across the geometric parameters of housings ie. roundness of bore, parallelism of interfaces and surface finish to ensure perfect mounting of bearing and shaft.
Do you want to discuss a concrete project or want more information about our products?
Key Features
Single Solution for Multiple Applications
One Complete Package, Endless Benefits
Dimensions and Interchangeability
Available for shaft diameters of 20 mm to 160 mm and 3/4 inch to 5 1/2 inch.
Split plummer block housings SNV are suitable for fitting with spherical roller bearings, barrel roller bearings and self- aligning ball bearings with a tapered or cylindrical bore as well as deep groove ball bearings, see table. The range of shaft diameters is 20 mm to 160 mm and 3/4 inch to 5 1/2 inch.
The dimensions of the housings SNV correspond to ISO 113 and DIN 736 to DIN 739. The housings SNV are interchangeable with the existing housings SN and SNE
